PostSubject: 12dBi Patch Antenna 2.4GHz   Thu Feb 12, 2009 7:55 pm



Kategori : Indoor Antenna
Kode : AODM24-12
Harga : Rp 572.000,00

Antenna Indoor flat panel 12 dbi 2,4 GHz. Cocok untuk aplikasi hotspot indoor. Termasuk kabel jumper N-Male to N-male 1 meter.

Electrical Specifications

* Frequency 2400-2500 MHz
* Gain ( dBi ) 12 dBi
* Polarization Vertical or Horizontal

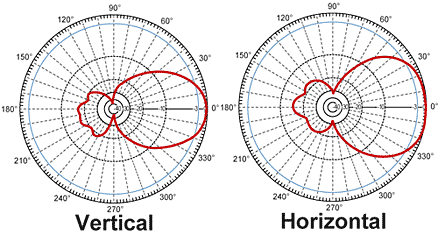

* Vertical Beamwidth 34°
* Horizontal Beamwidth 65°
* Max. Input Power 200W
* Impedance 50 Ohms
* VSWR 1.5:1
* Lightning Protection DC Ground

Mechanical Specifications

* Output Connector Integral N-Female
* Mounting 1" (25.4 mm) to 1.7" (43.2 mm) dia. masts
* Vertical Tilt 0-30° Up or Down
* Radome UV-Inhibited ABS
* Operating Temperature -40° C to to 55° C
* Dimensions 102 x 102 x 102 mm
* Weight - Antenna 0.6 lbs. (0.27 Kg)
* Weight - Mount 0.4 lbs. (0.18 Kg)
* Rated Wind Velocity 150MPH/h (241Km/h)
* RoHS Compliant Yes
